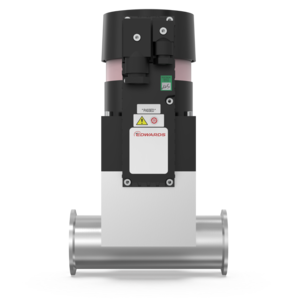

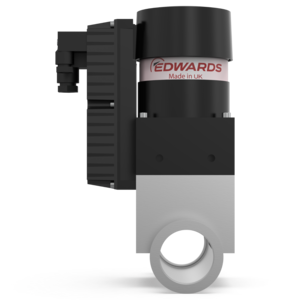

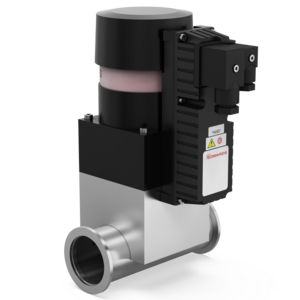

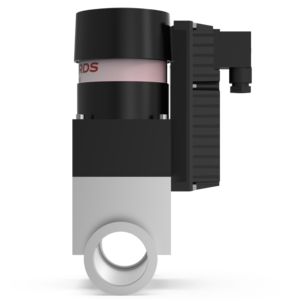

Inline Valve - IPV40EKA - Solenoid Valve 240V Al
Numero di riferimento: C41651000
EUR 2,164.00
Variante
Esplora la gamma di varianti elencate di seguito per comparare il prodotto
| Short Description | Numero di riferimento | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41305000 | - | - | |
| C41610000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41612000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41630000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41632000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41651000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41653000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 |
IPVEK ISO-KF - In-line Isolation Valve
The Edwards IPVEK series valves are compact, light weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the IPVEK solenoid operated in-line valves are available with either aluminium (A) or stainless steel (S) bodies, with an overall MTTF of up to 500,000 cycles.
Features and Benefits
- Transient high power for opening – electronically switched
- Low energy consumption in the ‘hold open’ position
- Enclosure rating to IP55
- Grease free vacuum
- MTTF up to 500000 cycles
General Product Information
| Connection Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 0.800 |
| Valve Actuation Method | Solenoid / Electromagnetic |
| Connection Outlet Flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 240V 50Hz |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 278.15 |
| Temperature Ambient Storage Max | 343.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Pressure Differential Max | 100000.00 |
Operation Conditions - Limitations
| Altitude Max | 2000.00 |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁵ |
