P3 - Handheld Gauge, D03000420

Portable Gauging

Portable gauging offers the opportunity to easily take spot measurement checks.

Thanks to it being mains power independent, the Edwards P3 handheld all-in-one measuring system is the essential device for:

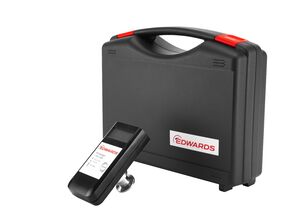

Also available is the accessory pack, which not only gives you a case in which to transport the gauge, avoiding damage in transit, but also some dedicated PC software and mains cable to enable longer term measurement tracking and logging, past the standard onboard datalogging. This can enable pressure rise leak testing on large/underground systems where standard leak checking is not viable.

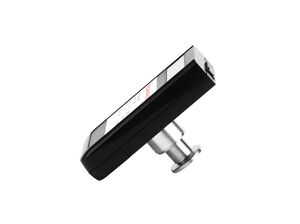

P3 Handheld Gauge

The Edwards P3 handheld measuring system is the essential device for on-site service calls and on the spot flexible checking. Thanks to the easy use and integrated measurement data memory, pressures can be directly measured at different locations for monitoring the application. Owing to the advanced measuring range of the high-precision Piezo/Pirani sensor, pressure measurement in the range of 1200 to 5x10-4 mbar can be displayed. The instrument can also be operated completely under vacuum conditions and with the integrated memory function it is possible to store and display up to 2000 measured values.

With the integrated battery, the device can be attached and operated at any pressure measuring point, and directly display or store up to 2,000 values for later evaluations and visualisations. All data values stored can be exported and displayed on a computer via USB link and by means of the optional software. The software is especially useful for setting up the devices or calculating rises in pressure for detecting rough leaks. The accessory carry case, which provides storing and transport protection for the P3 gauge, includes; VacuGraphTM software, spare battery, USB link, mains power adaptor, with each having its own dedicated space in the case.

Features and Benefits

• Measurement range 1200 to 5x10-4 mbar (7 decades)
• Usage in vacuum is possible
• Data logging via USB interface or using the internal memory to store up to 2000 values which can then be exported to PC
• • Cordless power supply with standard 9 V battery or 12V a.c. adapter in the accessory pack
• Pressure unit selectable: mbar, Torr and Pascal
• Windows software for measuring data storage and PC analysis in the accessory pack
